5E3 Tweed Deluxe Clone Chassis | Stock Circuit w/ Layout & Longevity Improvements
5E3 Tweed Deluxe Clone Chassis | Stock Circuit w/ Layout & Longevity Improvements
Couldn't load pickup availability
8/31 Update - More OTW will be built and ready to ship by 9/10.
A brief compilation of cell phone clips of one of these 5E3s from a new owner.

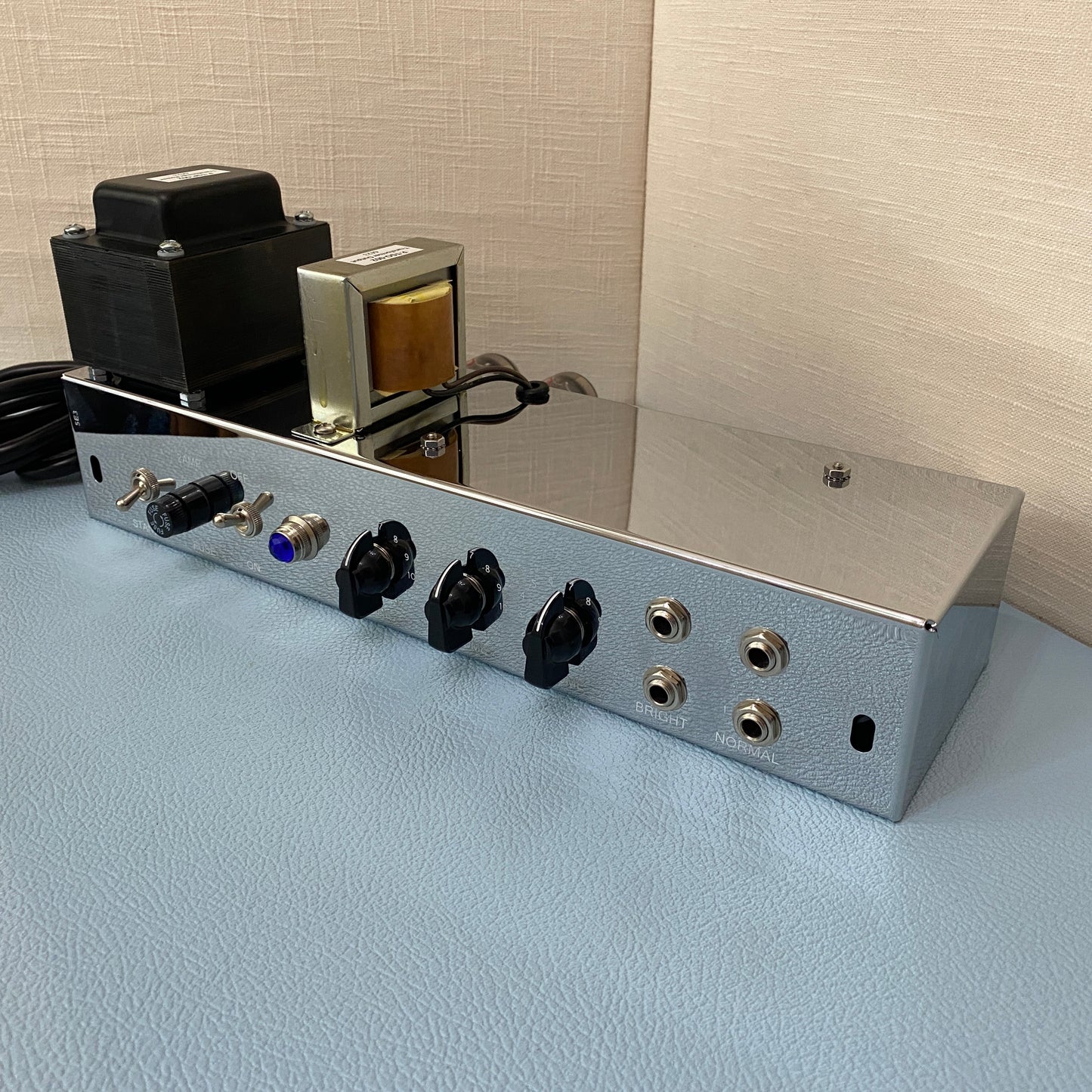

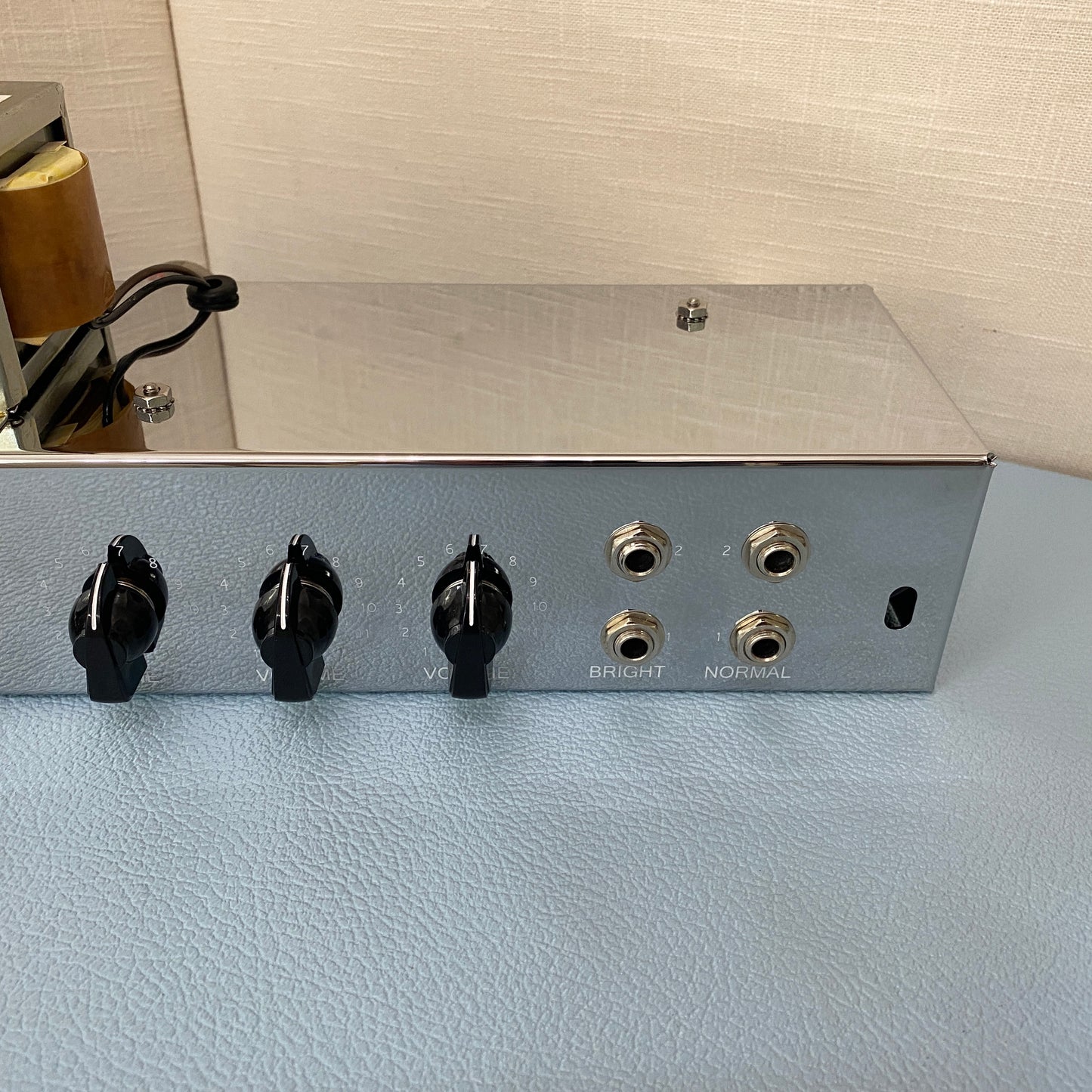

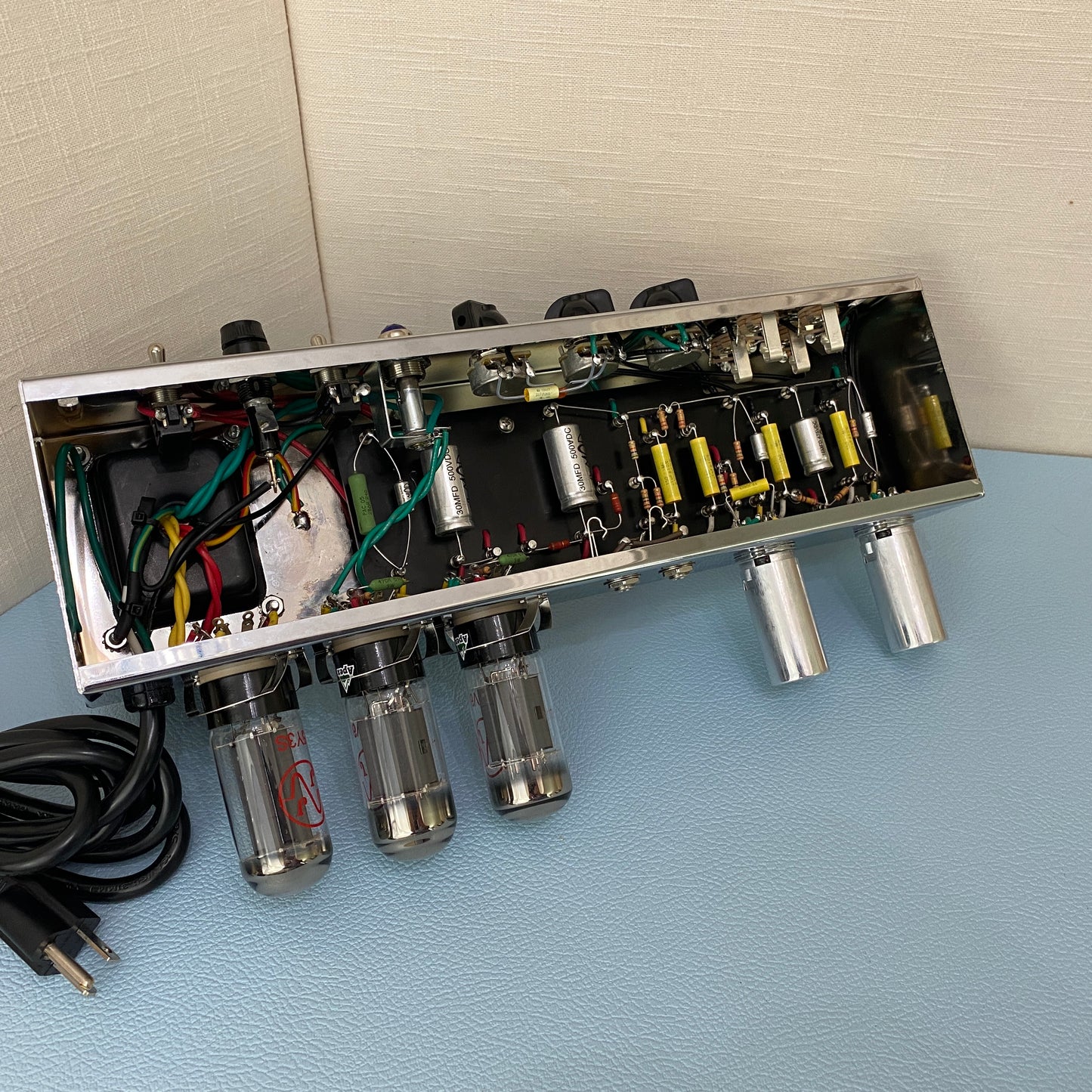

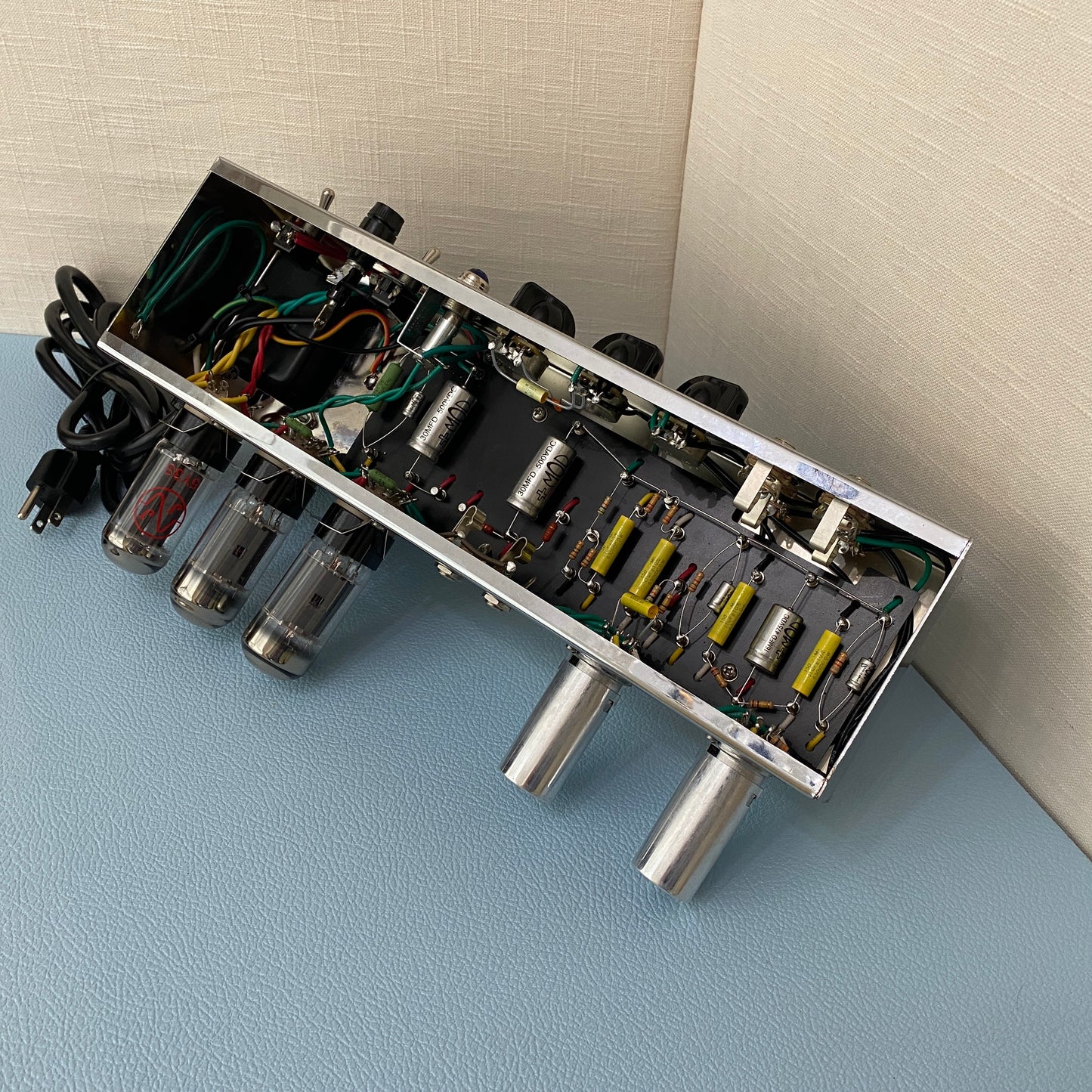

Here's an absolutely meticulously hand wired classic Fender 5E3 Tweed Deluxe clone chassis that is ready to be mounted in your own cabinet. The layout has been slightly modified to ensure dead quiet operation - no buzz, no hum, no hiss. 15 Watts of Tweed Bliss.

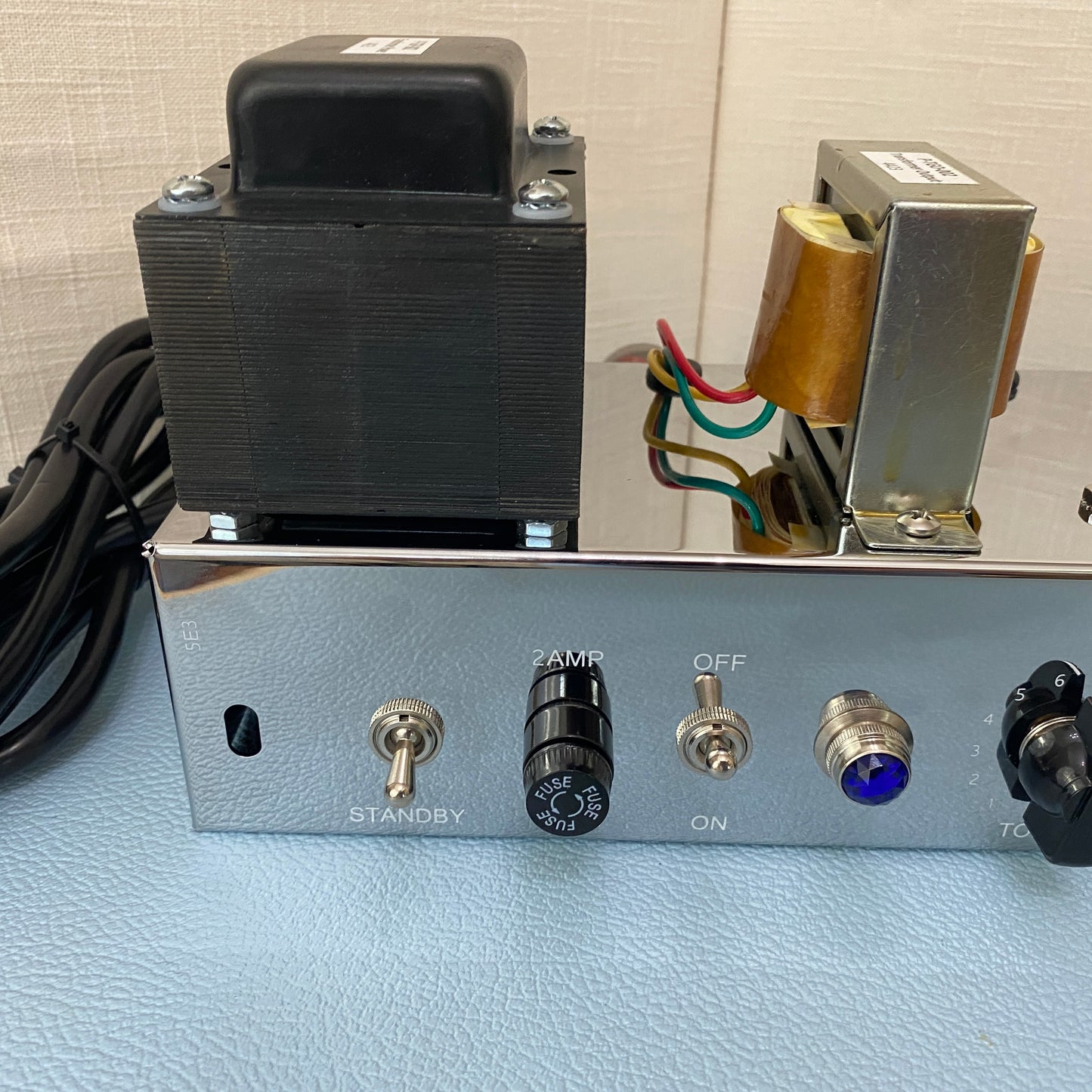

- AES Transformers 8 Ω Output
- JJ Tubes (12AY7, 12AX7, 2x 6V6 S, 5Y3)

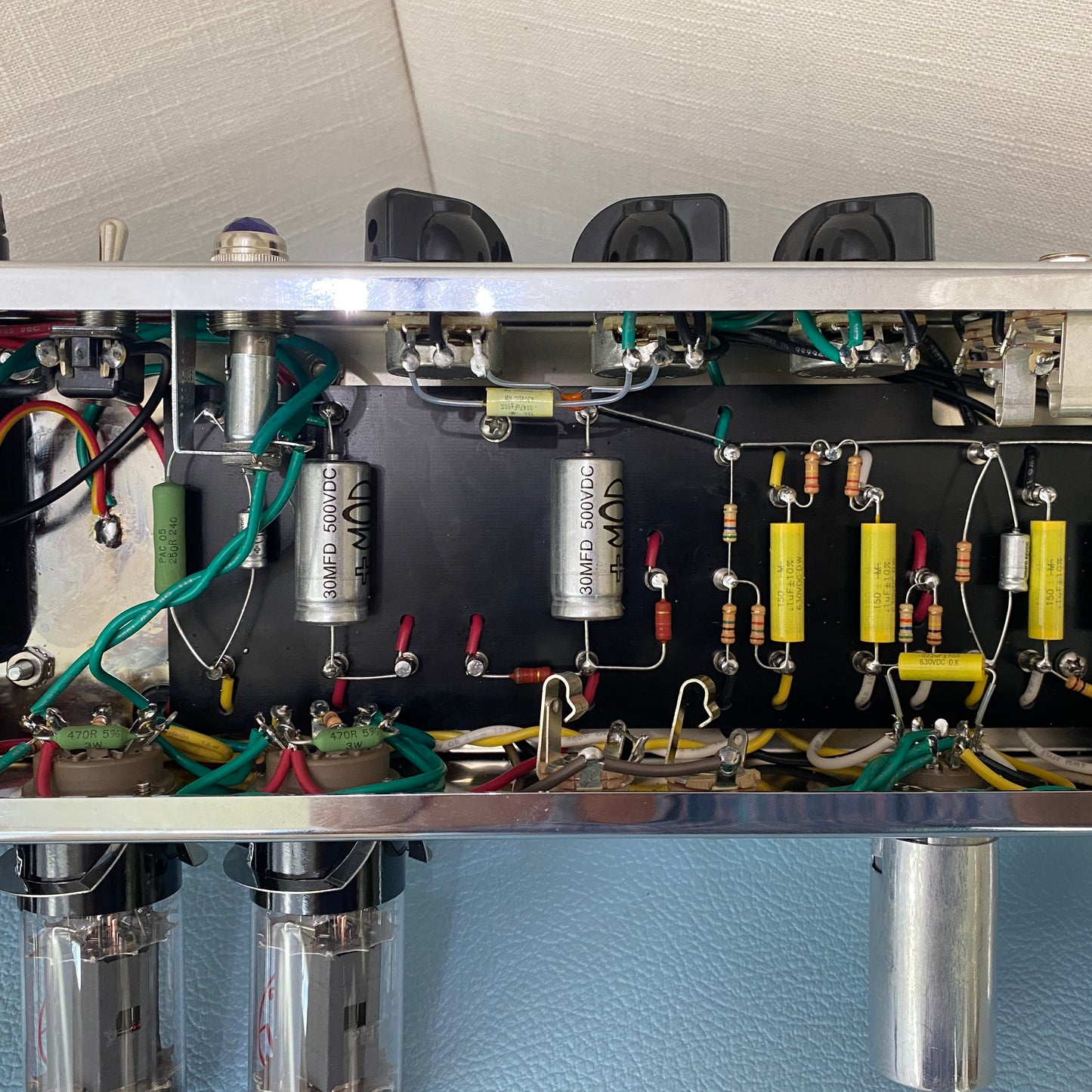

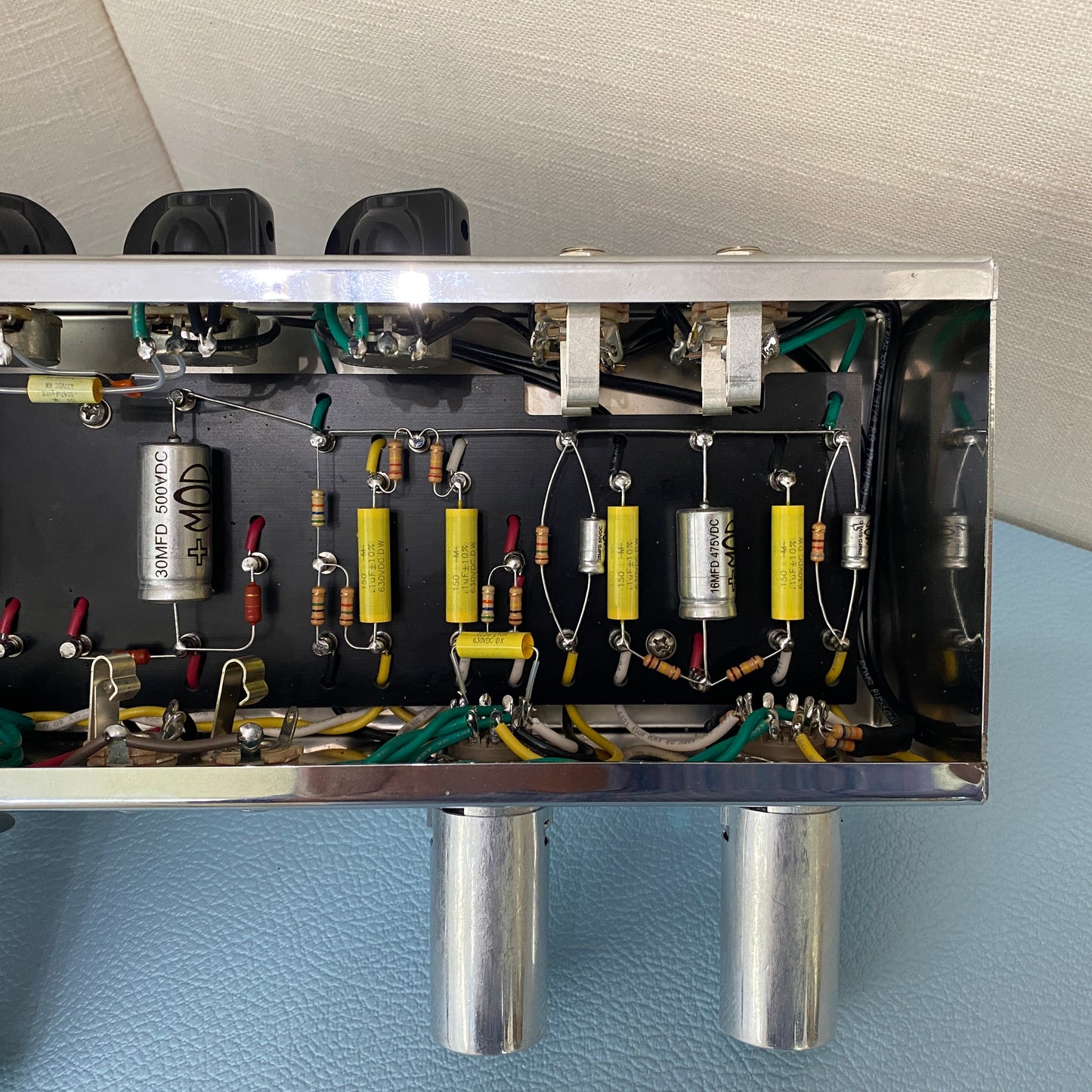

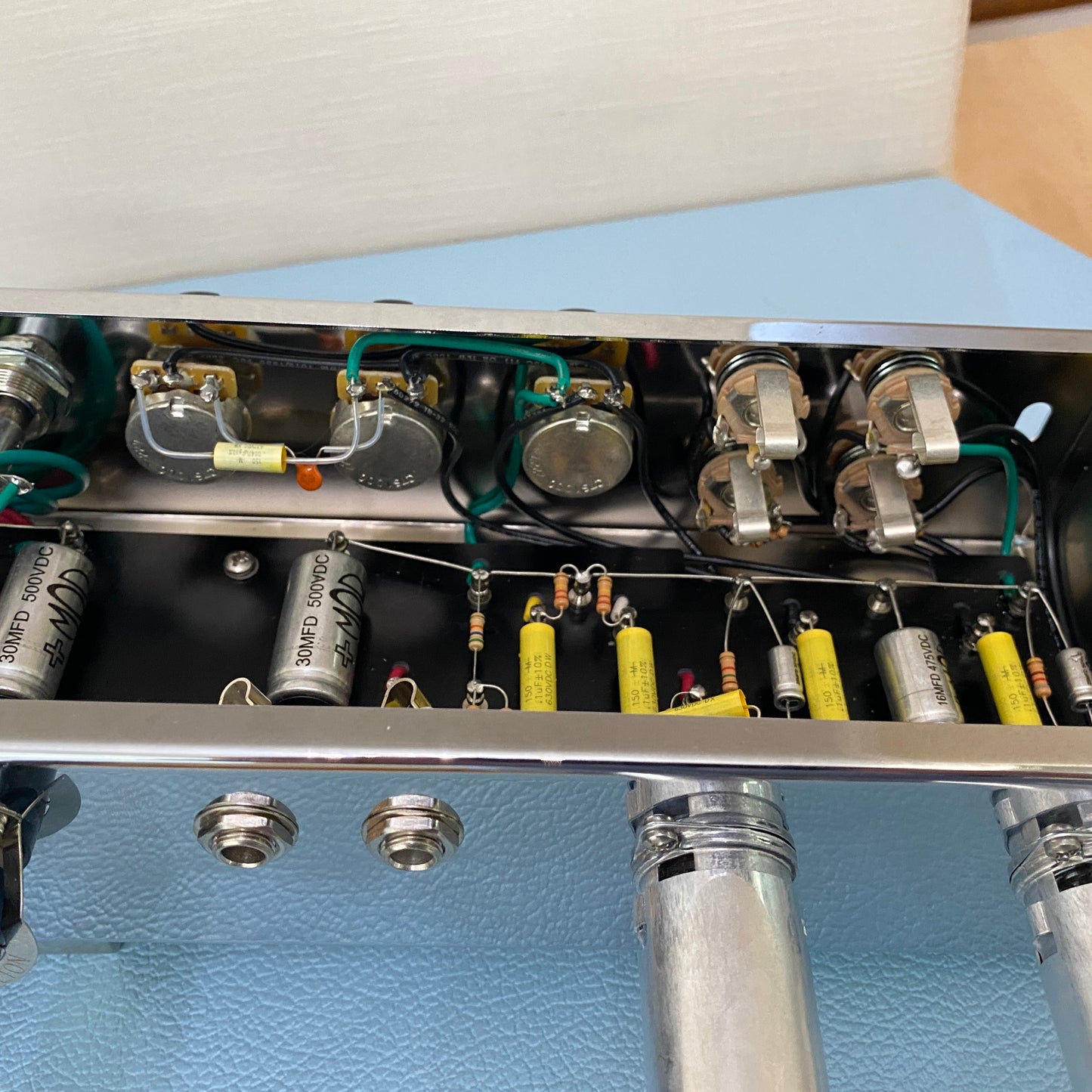

- Custom Turret Board Construction (CNC Cut In-House)
- Belton Tube Sockets & Shields/Retainers
- MOD Electrolytic Capacitors
- Mallory 150 Coupling Capacitors
- Switchcraft Jacks
- CTS Potentiometers
- Carling Switches
Important - This amplifier is not designed to used as a stand alone "head" and should be mounted in a cabinet of some sort to enclose the internal components. Potentially lethal voltages inside.
Chassis is standard 5E3 size. Mounting holes are 13.5" on center. Will fit Mojotone or Weber Cabinets no problem.
Warranty: Each Barbeaux Amplifier comes with a 2-Year Warranty (Parts & Labor Only) from date of delivery against any manufacturer defects - excluding tubes.
Share
![5E3 Tweed Deluxe Clone Chassis | Stock Circuit w/ Layout & Longevity Improvements](http://barbeaux-amps.com/cdn/shop/files/Barbeaux_Amplificaiton_5E3_Clone_Chassis_1.jpg?v=1724944152&width=1445)
![5E3 Tweed Deluxe Clone Chassis | Stock Circuit w/ Layout & Longevity Improvements](http://barbeaux-amps.com/cdn/shop/files/Barbeaux_Amplificaiton_5E3_Clone_Chassis_2.jpg?v=1724944163&width=1445)
![5E3 Tweed Deluxe Clone Chassis | Stock Circuit w/ Layout & Longevity Improvements](http://barbeaux-amps.com/cdn/shop/files/Barbeaux_Amplificaiton_5E3_Clone_Chassis_3.jpg?v=1724944175&width=1445)
![5E3 Tweed Deluxe Clone Chassis | Stock Circuit w/ Layout & Longevity Improvements](http://barbeaux-amps.com/cdn/shop/files/Barbeaux_Amplificaiton_5E3_Clone_Chassis_4.jpg?v=1724944190&width=1445)
![5E3 Tweed Deluxe Clone Chassis | Stock Circuit w/ Layout & Longevity Improvements](http://barbeaux-amps.com/cdn/shop/files/Barbeaux_Amplificaiton_5E3_Clone_Chassis_5.jpg?v=1724944203&width=1445)
![5E3 Tweed Deluxe Clone Chassis | Stock Circuit w/ Layout & Longevity Improvements](http://barbeaux-amps.com/cdn/shop/files/Barbeaux_Amplificaiton_5E3_Clone_Chassis_6.jpg?v=1724944215&width=1445)
![5E3 Tweed Deluxe Clone Chassis | Stock Circuit w/ Layout & Longevity Improvements](http://barbeaux-amps.com/cdn/shop/files/Barbeaux_Amplificaiton_5E3_Clone_Chassis_7.jpg?v=1724944229&width=1445)
![5E3 Tweed Deluxe Clone Chassis | Stock Circuit w/ Layout & Longevity Improvements](http://barbeaux-amps.com/cdn/shop/files/Barbeaux_Amplificaiton_5E3_Clone_Chassis_8.jpg?v=1724944242&width=1445)
As an owner of an ORIGINAL 1958 5e3 Deluxe I was blown away by the sound accuracy and meticulous detail and workmanship of the Barbeaux 5e3 chassis. On top of all of that Huddy (the brains behind Barbeaux!!) is an incredibly kind person and made the buying experience a pleasure. Upon the completion of this order I had already placed an order for a custom amp because of the quality, build, and experience of the 5e3 purchase and I plan on many more amp builds with Barbeaux. I HIGHLY recommend Barbeaux Amplification for ALL of your tone and amp needs.
